Real Time Mechanical Power Dynamometer Board

Electrical Engineering Student;

A dynamometer is a device used to measure the torque and rotational speed (RPM) of a motor or engine in order to determine its power output and performance characteristics.

unnamed


image_2025-09-02_183022028


UBC Supermileage, Vancouver, BC, Canada

September 2025 - present

Skills: C++, RTOS, Serial, Data Processing, PCB

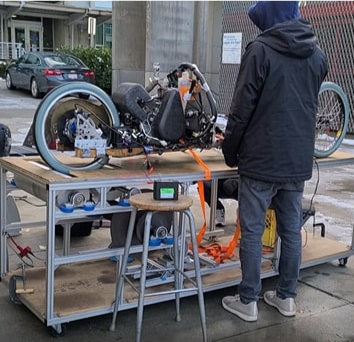

  • Built a custom dynamometer system for electric motor testing, measuring torque and RPM with high-precision sensors and STM32-based firmware.
  • Utilized FreeRTOS to efficiently manage tasks between user inputs, sensors, and LCD, ensuring responsive real-time operation.
  • Implemented real-time data acquisition and logging over UART and SD card via SPI, supporting live monitoring and post-processing analysis.

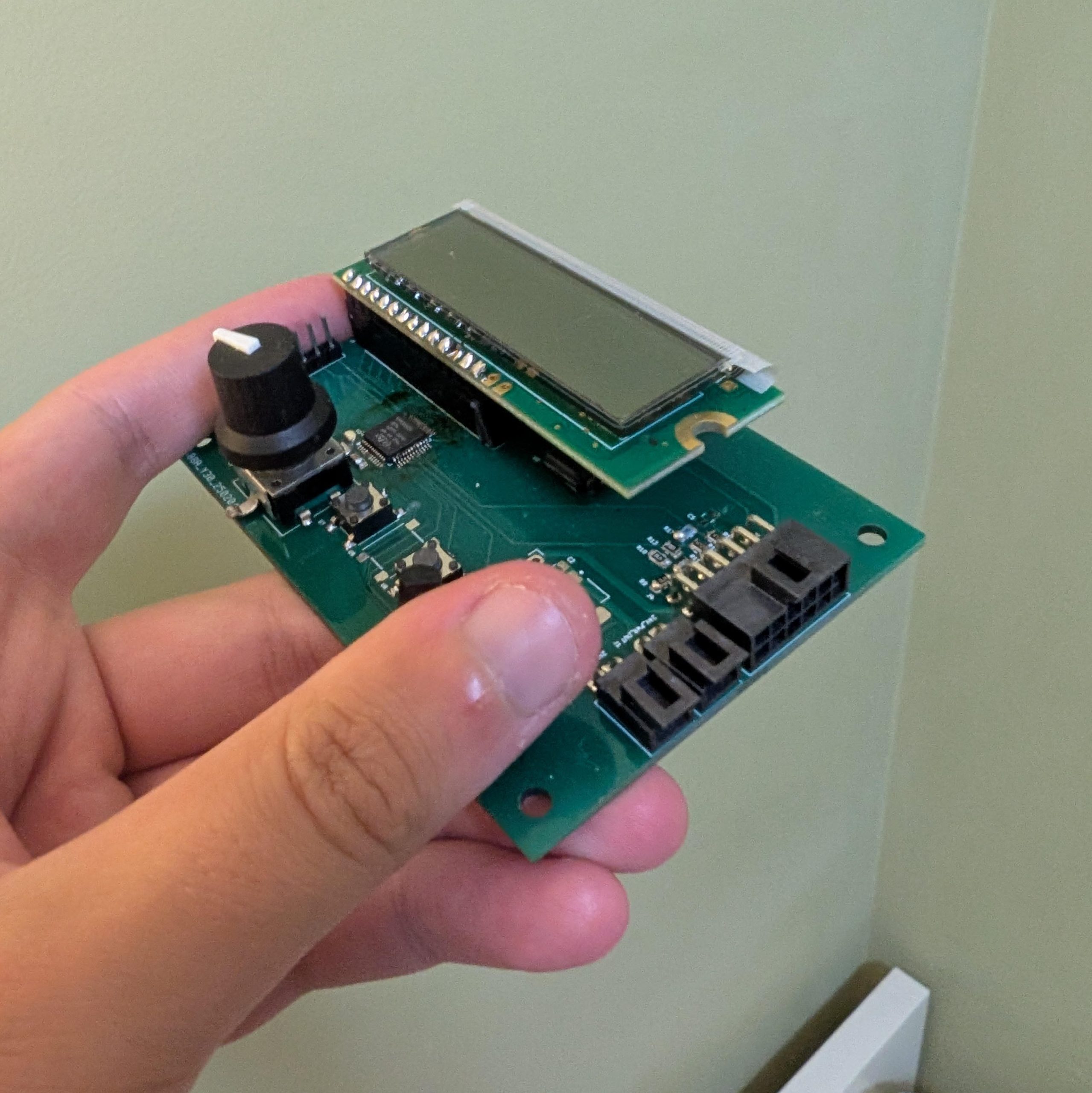

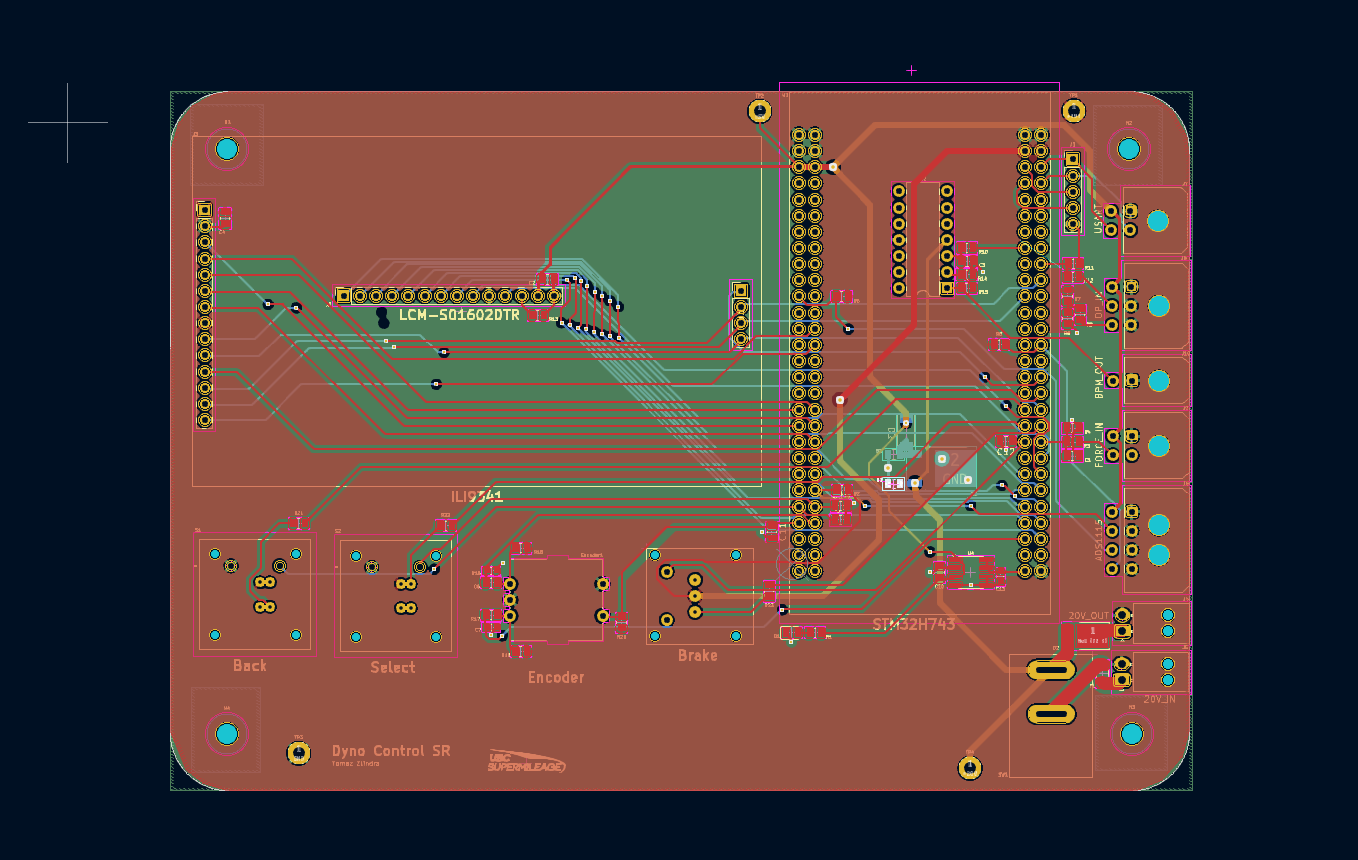

  • Designed a user-friendly PCB with LCD, buttons, and intuitive menu system for easy operation and real-time data visualization.
